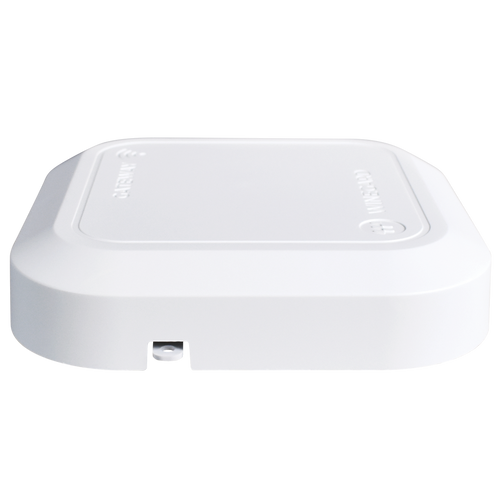

Gateway 4G

Model: GW-1000
(1 review) Write a Review
Adding to cart… The item has been added
  • Overview

    Package Dimensions and Weights

    Weight: 1.38 LBS
    Height: 1.88 Inches
    Width: 10.50 Inches
    Depth: 8.50 Inches
  • Tech Specs

    • Stay connected with friends and family
    • Easily create a connectivity hub for your home on wheels
    • Entertain and work from wherever the road takes you
    • Starlink compatible to integrate all your internet sources
    • Reduce outages by using all of your internet connections
    • Connects to the Winegard AIR 360+ for hassle free set-up


    • Winegard AIR 360+ required (sold separately or RV Manufacturer installed) - Upgrade your AIR 360+ with the Winegard Gateway 4G for an all-in-one solution to your Internet, TV, and AM/FM signal needs!
    • Powerful 4G LTE & WiFi for Your RV - High-performance 4G LTE antennas provide reliable Internet access while parked and while traveling down the road.
    • Supports Multiple Carriers - Flexible data plan options include Winegard FreedomGO no-contract 30-day plans, AT&T, T-Mobile, and Verizon.
    • Connectivity Types: 4G, WiFi, Starlink*
    • Setup Requirements: Wireless 802.11 b/g/n 2.4 GHz network; Winegard AIR 360+ antenna; computer, tablet, or smartphone with a web browser; *requires Starlink terminal connected via ethernet WAN
    • Wireless Standard: 802.11b/g/n
    • Wireless Speed: 2.4 GHz: 450Mbps (Rx), 450 Mbps (Tx)
    • Mounting: Installs on RV ceiling (remove cap indicating AIR 360+ is installed)
    • Wireless Security: WPA, WPA2, WPA mixed
    • Max WiFi Range: Up to .5 mi.
    • Max 4G LTE Speed: 150 Mbps download
    • SIM Card Port: Mini SIM (2FF) - (25mm x 15mm x 0.76mm)
    • Power Rating: DC 9-16V, 1A
    • Frequency Band: 2.4 GHz
    • WiFi Antennas: (2) in Gateway & (1) in Air 360+
    • 4G LTE Antennas: (2) in AIR 360+ GPS, (1) in Gateway
    • Compatible Networks Required for 4G LTE Service:
    • Complimentary: Telephone and email support
    • Online: Technical manuals and instructions
    • Support: Large Dealer Support Network
    • Warranty: 2-Year Parts, 1-Year Labor Warranty


    • Winegard Gateway 4G LTE WiFi Router
    • Mounting Plate
    • Installation Hardware
    • Power Cable
    • Printed Documentation
  • Videos

  • Downloads

  • Reviews

    1 Review

    • 1

      Posted by William Studebaker on Apr 11th 2023

      Doesn’t work no help from mfg
